Test Cycle Controller

The Test Cycle Controller controls groups of motors running cycles of Start/Stop, Continuous Run, and Bearing Wear.

Click pictures to enlarge.

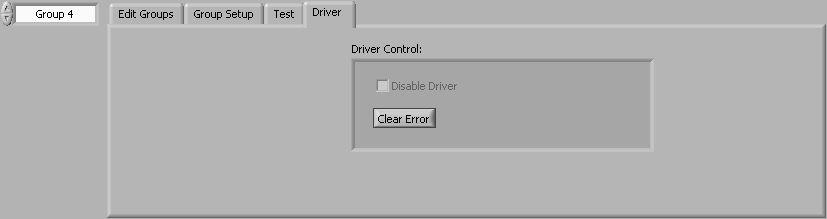

Test Cycle Controller                               Driver Tab                                      Edit Groups Tab



Group Setup Tab                                           Test Tab



Download a Data Sheet.

Features:

• Controls number of test cycles run by each group of motors

• Programmable test cycle: Start/Stop, Continuous run, Bearing wear
• Up to 10 motor groups running independent tests with 1 to 32 motors per group

• Supports 4 chassis for testing up to 32 motors on one PC

• Group Number, Status, Speed, and Run current displayed for each motor

• Built-in instrumentation measures motor data and stores them in Excel data files:

• Data stored once-per-cycle (Cycle Data File):

• Time stamp
• Speed sample
• Run current sample at full motor speed
• Start revolutions
• Stop revolutions
• Stop time
• Cycle number
• Cycle status (complete, errors)

• Data stored every 200mS during cycle (Interval Data File):

• Time stamp
• Speed
• Run current

• PWM
• Cycle number
• Save group configuration file

• A Test Cycle Configuration File is required. Use the Test Cycle Configuration Utility to create this file

• A Motor Configuration File is required. Use the SmartDriver Configuration Utility to create this file
